Mounting & stability
Fences should stand sturdy and stable and not just to be detached by every person who wants evil. That is why we use strong clamps. High security clamps can only be opened with a special high security key.
In case of wind or unstable surfaces, a fence line should be supported with struts. These are mounted against the fence, so that the fences are even more stable and cannot just fall over or blow over.
Clamp Basic
Standard clamp. Can be loosened on the inside of the enclosure with a spanner.
| Weight | 0,26 kg |

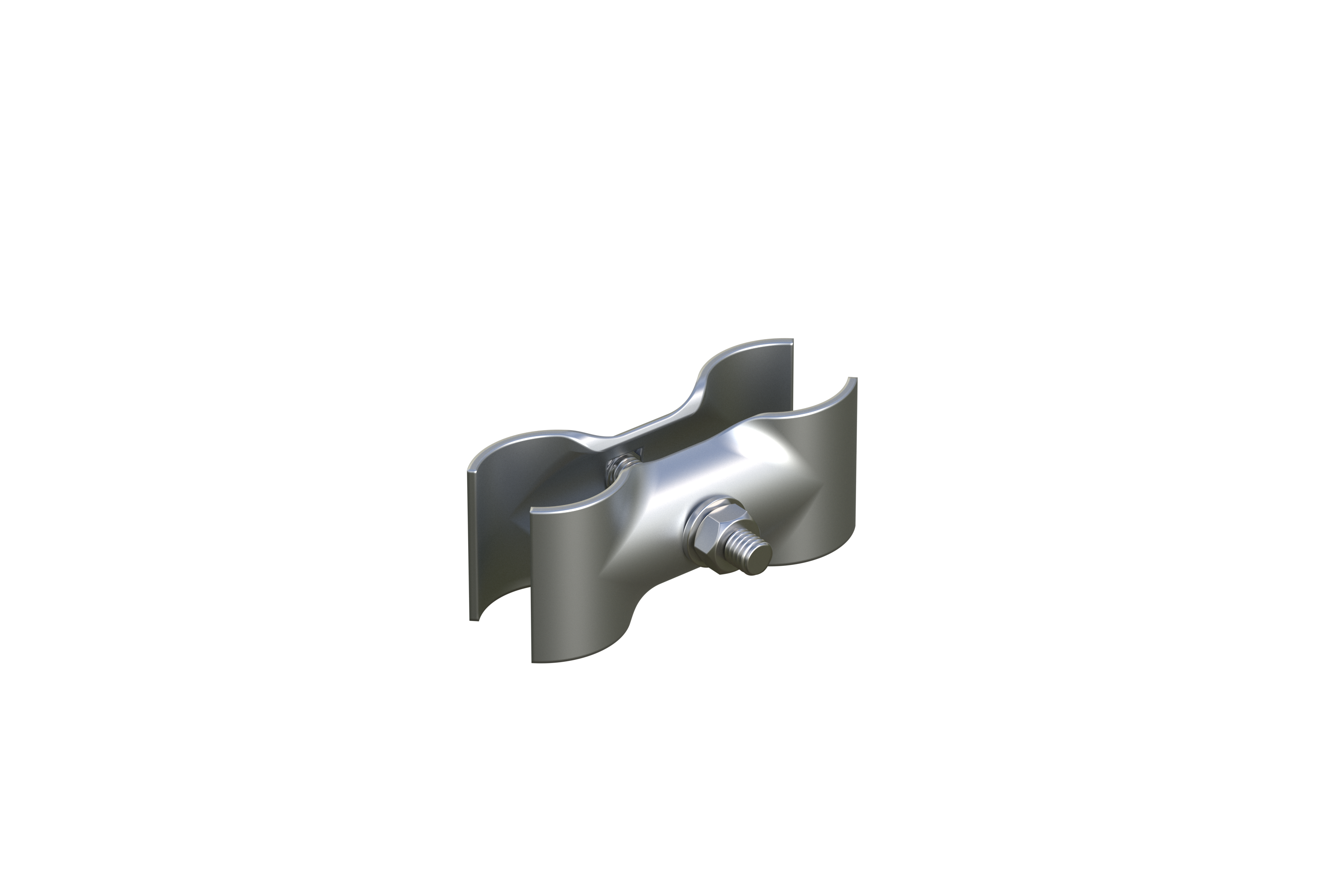

Coupler Standard
The standard clamp is a basic solution for connecting construction fences together. Each clamp is closed on the inside of the site.
| Weight | 0,45 kg |
Coupler High Security
High Security Clamp for extra security. The clamp is equipped with a nut protection and cannot be opened with normal tools.
| Weight | 0,44 kg |

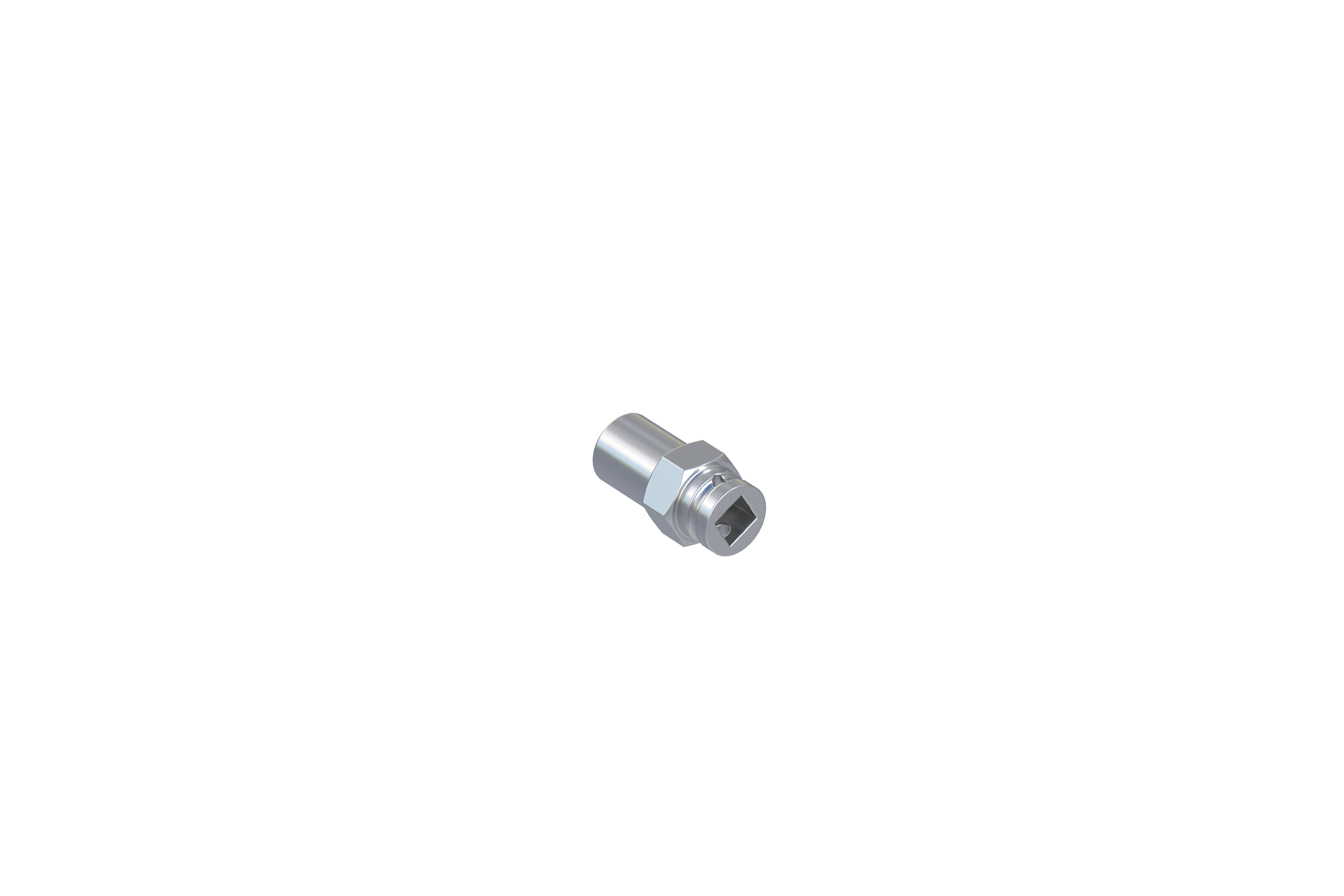

Key High Security coupler
With this special key you can open and close the High Security coupler.
| Lenght | 30 mm |
| Hight | 55 mm |
| Weight | 0,16 kg |

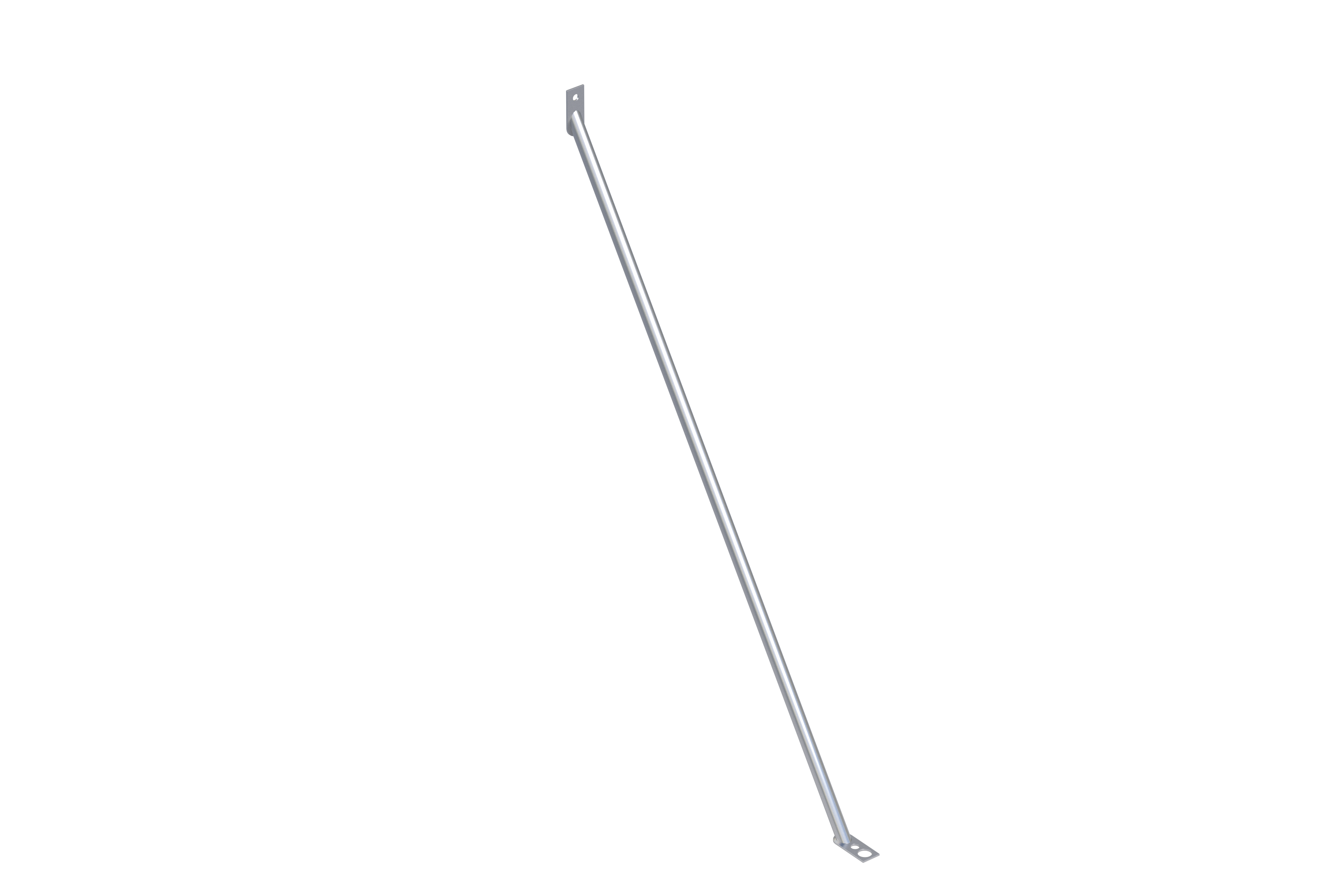

Strut
Limits the risk of panels being blown or knocked over. The stabiliser offers improved stability thanks to being fitted at an angle of 45 degrees to the temporary fencing.
| Lenght | 2.170 mm |
| Weight | 4,5 kg |

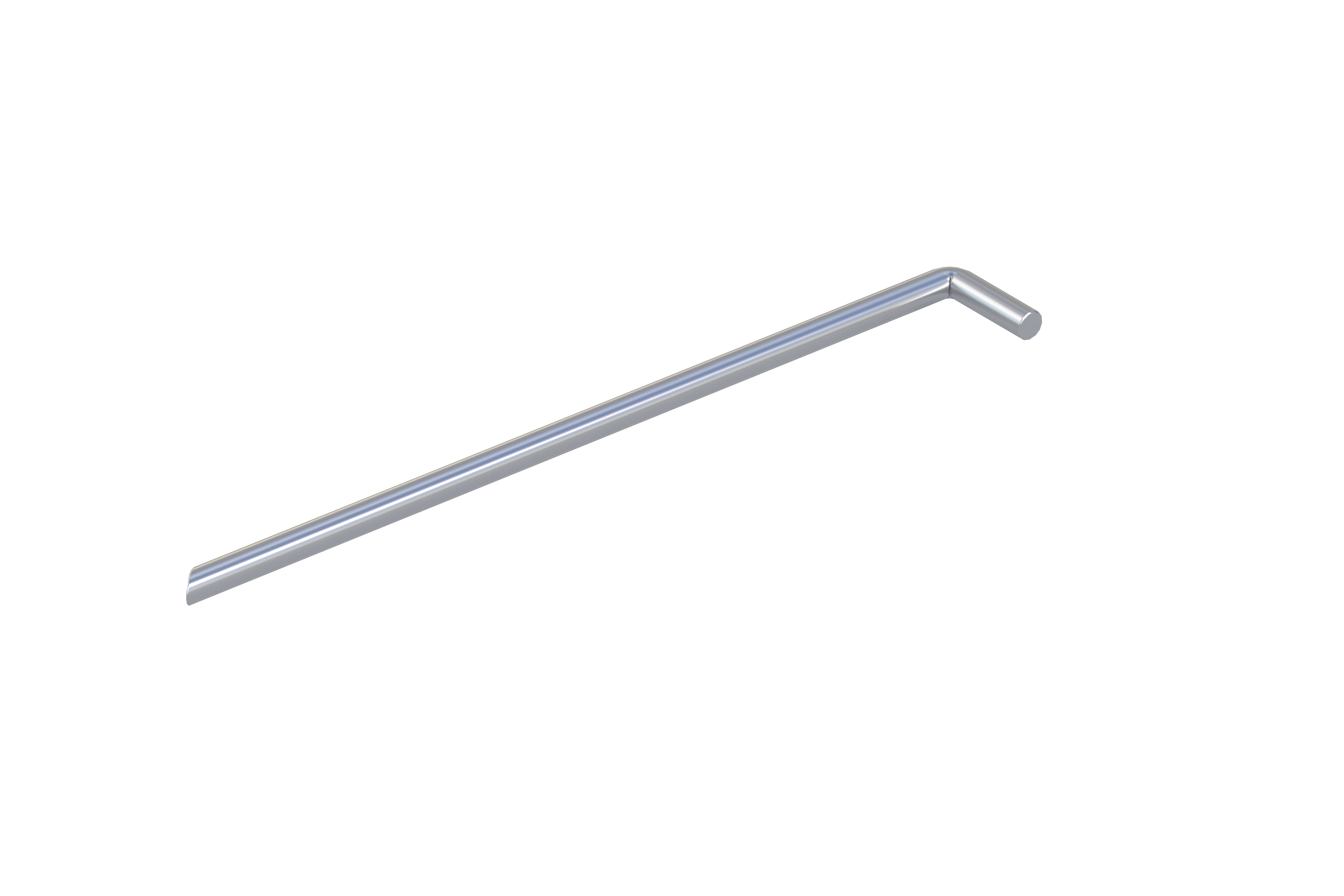

Soilpin for brace
Prevents panels being blown over. Fence stabilisers are fixed into the ground with a soil pin.
| Lenght | 600 mm |
| Weight | 1,5 kg |

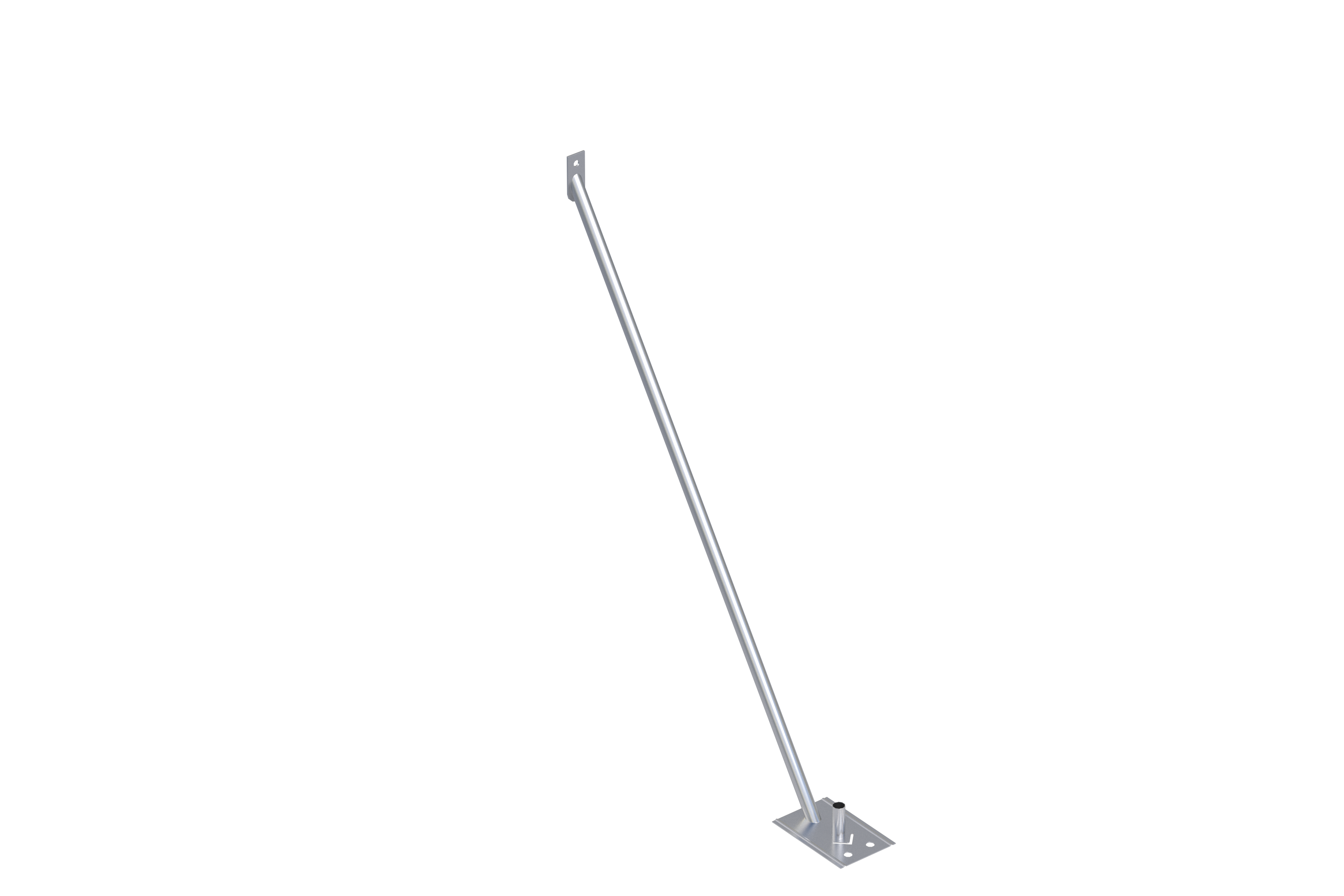

Brace incl. steel footing
Strut with integrated base plate and a welded-on ground sleeve. The strut is attached between two construction fence panels by a coupler.
| Lenght | 1.300 mm |
| Weight | 5 kg |
